7  GPS Traces and Animations

The Lecture slides can be found here.

This lab’s notebook can be downloaded from here.

## check if those are installed
!pip install geoviews

Requirement already satisfied: geoviews in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (1.15.1)
Requirement already satisfied: bokeh>=3.8.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (3.8.2)
Requirement already satisfied: cartopy>=0.18.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (0.25.0)
Requirement already satisfied: holoviews>=1.16.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (1.22.1)
Requirement already satisfied: numpy in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (2.3.5)
Requirement already satisfied: packaging in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (26.0)
Requirement already satisfied: panel>=1.0.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (1.8.7)
Requirement already satisfied: param<3.0,>=1.9.3 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (2.3.1)
Requirement already satisfied: pyproj in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (3.7.2)
Requirement already satisfied: shapely>=1.8.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (2.1.2)
Requirement already satisfied: xyzservices in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from geoviews) (2025.11.0)
Requirement already satisfied: Jinja2>=2.9 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (3.1.6)
Requirement already satisfied: contourpy>=1.2 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (1.3.3)
Requirement already satisfied: narwhals>=1.13 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (2.16.0)
Requirement already satisfied: pandas>=1.2 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (3.0.0)
Requirement already satisfied: pillow>=7.1.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (12.1.0)
Requirement already satisfied: PyYAML>=3.10 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (6.0.3)
Requirement already satisfied: tornado>=6.2 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bokeh>=3.8.0->geoviews) (6.5.4)
Requirement already satisfied: matplotlib>=3.6 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from cartopy>=0.18.0->geoviews) (3.10.8)
Requirement already satisfied: pyshp>=2.3 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from cartopy>=0.18.0->geoviews) (3.0.3)
Requirement already satisfied: colorcet in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from holoviews>=1.16.0->geoviews) (3.1.0)
Requirement already satisfied: python-dateutil>=2.8.2 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from holoviews>=1.16.0->geoviews) (2.9.0.post0)
Requirement already satisfied: pyviz-comms>=2.1 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from holoviews>=1.16.0->geoviews) (3.0.6)
Requirement already satisfied: MarkupSafe>=2.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from Jinja2>=2.9->bokeh>=3.8.0->geoviews) (3.0.3)
Requirement already satisfied: cycler>=0.10 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from matplotlib>=3.6->cartopy>=0.18.0->geoviews) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from matplotlib>=3.6->cartopy>=0.18.0->geoviews) (4.61.1)
Requirement already satisfied: kiwisolver>=1.3.1 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from matplotlib>=3.6->cartopy>=0.18.0->geoviews) (1.4.9)
Requirement already satisfied: pyparsing>=3 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from matplotlib>=3.6->cartopy>=0.18.0->geoviews) (3.3.2)
Requirement already satisfied: tzdata in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from pandas>=1.2->bokeh>=3.8.0->geoviews) (2025.3)
Requirement already satisfied: bleach in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (6.3.0)
Requirement already satisfied: linkify-it-py in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (2.0.3)
Requirement already satisfied: markdown in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (3.10.1)
Requirement already satisfied: markdown-it-py in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (4.0.0)
Requirement already satisfied: mdit-py-plugins in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (0.5.0)
Requirement already satisfied: requests in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (2.32.5)
Requirement already satisfied: tqdm in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (4.67.2)
Requirement already satisfied: typing-extensions in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from panel>=1.0.0->geoviews) (4.15.0)
Requirement already satisfied: certifi in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from pyproj->geoviews) (2026.1.4)
Requirement already satisfied: six>=1.5 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from python-dateutil>=2.8.2->holoviews>=1.16.0->geoviews) (1.17.0)
Requirement already satisfied: webencodings in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from bleach->panel>=1.0.0->geoviews) (0.5.1)
Requirement already satisfied: uc-micro-py in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from linkify-it-py->panel>=1.0.0->geoviews) (1.0.3)
Requirement already satisfied: mdurl~=0.1 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from markdown-it-py->panel>=1.0.0->geoviews) (0.1.2)
Requirement already satisfied: charset_normalizer<4,>=2 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from requests->panel>=1.0.0->geoviews) (3.4.4)
Requirement already satisfied: idna<4,>=2.5 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from requests->panel>=1.0.0->geoviews) (3.11)
Requirement already satisfied: urllib3<3,>=1.21.1 in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from requests->panel>=1.0.0->geoviews) (2.6.3)
Requirement already satisfied: colorama in C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages (from tqdm->panel>=1.0.0->geoviews) (0.4.6)

import pandas as pd, geopandas as gpd
import movingpandas as mpd

import os
from shapely.geometry import Point, LineString, Polygon
from matplotlib import pyplot as plt
import movingpandas as mpd

import folium
import requests
from io import BytesIO

import warnings
warnings.filterwarnings('ignore')

C:\Users\gfilo\AppData\Local\miniconda3\envs\geovis\Lib\site-packages\movingpandas\__init__.py:41: UserWarning: Missing optional dependencies. To use the trajectory smoother classes please install Stone Soup (see https://stonesoup.readthedocs.io/en/latest/#installation).
  warnings.warn(e.msg, UserWarning)

7.1 Getting GPS trajectories from OpenStreetMap Data

The OSM API provides access to GPS traces contributed by the OpenStreetMap community. Users can query and retrieve traces based on parameters like geographical bounding box, time range, and user ID. The API supports output formats such as GPX for easy integration into applications or analysis. You can have a look at the last GPS traces uploaded here. Each trace entry likely includes:

• Trace ID (unique identifier for the trace)
• Trace Name (optional name provided by the user)
• Uploader Username
• Upload Date
• Trace Summary (e.g., distance, duration)

It’s not possible to download traces from OSM using OSMnx. One has to script their own code.

Parts of this section of the notebook have been readapted from this notebook created by Anita Graser.

7.1.1 Downaloding GPS traces from the OpenStreetMap

We can try to get OSM traces around the Uni of Liverpool Campus. Feel free to change the area.

import osmnx as ox
# Define the place name
place_name = "University of Liverpool, UK"

# Get the latitude and longitude
latitude, longitude = ox.geocoder.geocode(place_name)

# Create the bbox
bbox = ox.utils_geo.bbox_from_point((latitude, longitude), dist = 3000)
# transform to string
bbox = f"{bbox[0]},{bbox[1]},{bbox[2]},{bbox[3]}"
print(bbox)

-3.0110920936752046,53.38026323993522,-2.9205752283625377,53.43422246006479

We need the bbox_to_osm_format function below to convert our bounding box coordinates into the format required by the OpenStreetMap (OSM) API. The input tuple contains coordinates in the order (north, south, east, west). The function rearranges these values into the string “west,south,east,north”, which is the format expected by OSM for API queries.

The get_osm_traces function below retrieves GPS traces from OpenStreetMap within a specified bounding box, processing up to a user-defined maximum number of pages. It uses a while loop to fetch and parse GPS data into GeoDataFrames, querying the OSM API by incrementally updating the page number until no more data is available or the maximum page limit is reached.

Upon fetching the data, the function concatenates these individual GeoDataFrames into a single comprehensive GeoDataFrame. Before returning the final GeoDataFrame, it cleans the dataset by dropping a predefined list of potentially irrelevant or empty columns.

def _check_bbox(bbox):
    """
    Accept either:
      - 'west,south,east,north'
      - (west, south, east, north)
      - [west, south, east, north]

    Returns
    -------
    bbox_str : str
    bbox_vals : tuple[float, float, float, float]
    """
    if isinstance(bbox, str):
        parts = [p.strip() for p in bbox.split(",")]
        if len(parts) != 4:
            raise ValueError(
                "bbox string must have 4 comma-separated values: 'west,south,east,north'"
            )
        west, south, east, north = map(float, parts)
    elif isinstance(bbox, (tuple, list)) and len(bbox) == 4:
        west, south, east, north = map(float, bbox)
    else:
        raise TypeError(
            "bbox must be either a string 'west,south,east,north' "
            "or a tuple/list of 4 numbers"
        )

    if west >= east:
        raise ValueError("Invalid bbox: west must be smaller than east")
    if south >= north:
        raise ValueError("Invalid bbox: south must be smaller than north")

    # OSM trackpoints endpoint documents a max width/height of 0.25 degrees
    if (east - west) > 0.25 or (north - south) > 0.25:
        raise ValueError(
            "bbox too large for /trackpoints: width and height must each be <= 0.25 degrees"
        )

    bbox_str = f"{west},{south},{east},{north}"
    return bbox_str, (west, south, east, north)

def get_osm_traces(max_pages=2, bbox='16.18,48.09,16.61,48.32'):
    """
    Retrieve OpenStreetMap GPS traces within a specified bounding box.

    Parameters
    ----------
    max_pages: int, optional
        The maximum number of pages to retrieve. Defaults to 2.
    bbox: str, optional
        The bounding box coordinates in the format 'west,south,east,north'.
        Defaults to '16.18,48.09,16.61,48.32'.

    Returns
    -------
    final_gdf: GeoDataFrame
        A GeoDataFrame containing the retrieved GPS traces.
    """

    _check_bbox(bbox)
    all_data = []
    page = 0

    headers = {
        "User-Agent": "w08_advanced.ipynb/1.0 (your_email@example.com)"
    }

    while page <= max_pages:
        url = f'https://api.openstreetmap.org/api/0.6/trackpoints?bbox={bbox}&page={page}'
        response = requests.get(url, headers=headers, timeout=30)

        if response.status_code != 200 or not response.content:
            print(response.status_code)
            print(response.content[:500])
            break

        gdf = gpd.read_file(BytesIO(response.content), layer='track_points')

        if gdf.empty:
            break

        all_data.append(gdf)
        page += 1

    if not all_data:
        return gpd.GeoDataFrame()

    final_gdf = gpd.GeoDataFrame(pd.concat(all_data, ignore_index=True))

    columns_to_drop = [
        'ele', 'course', 'speed', 'magvar', 'geoidheight', 'name', 'cmt', 'desc',
        'src', 'url', 'urlname', 'sym', 'type', 'fix', 'sat', 'hdop', 'vdop',
        'pdop', 'ageofdgpsdata', 'dgpsid'
    ]

    final_gdf = final_gdf.drop(
        columns=[col for col in columns_to_drop if col in final_gdf.columns]
    )

    return final_gdf

max_pages = 2 # pages of data,
gps_track_points = get_osm_traces(max_pages, bbox)
gps_track_points.head()

	track_fid	track_seg_id	track_seg_point_id	time	geometry
0	0	0	0	2025-03-20 17:25:11+00:00	POINT (-2.9778 53.40801)
1	0	0	1	2025-03-20 17:25:12+00:00	POINT (-2.9778 53.40801)
2	0	0	2	2025-03-20 17:25:13+00:00	POINT (-2.9778 53.40801)
3	0	0	3	2025-03-20 17:25:14+00:00	POINT (-2.9778 53.40801)
4	0	0	4	2025-03-20 17:25:15+00:00	POINT (-2.9778 53.40801)

We initially download 2 pages of GSP traces. We can try with higher numbers to get more data. More recent traces are downloaded first.

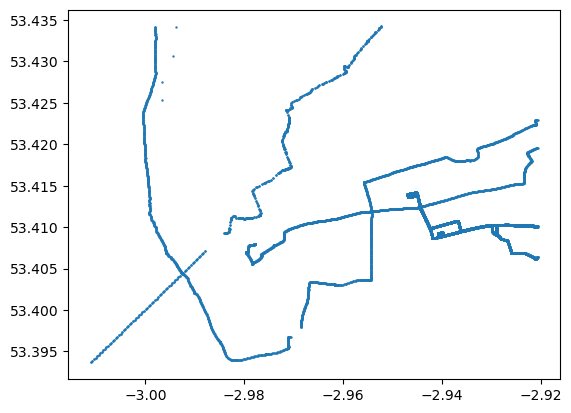

gps_track_points.plot(markersize = 0.5) # they are still trackpoints

7.1.2 Transform the Point GeoDataFrame in a LineString GeoDataFrame with MovingPandas

MovingPandas is a Python library designed for analyzing movement data using Pandas. It extends Pandas’ capabilities to handle temporal and spatial data jointly. It is the ideal library for trajectory data analysis, visualization, and exploration. MovingPandas provides functionalities for processing and analyzing movement data, including trajectory segmentation, trajectory aggregation, and trajectory generalization.

See examples and documentation at https://movingpandas.org

The following code creates a TrajectoryCollection object by providing the GPS track points data, specifying the column that identifies trajectories, and indicating the column containing timestamps.

osm_traces = mpd.TrajectoryCollection(gps_track_points, 'track_fid', t='time')
print(f'The OSM traces download contains {len(osm_traces)} tracks')

The OSM traces download contains 8 tracks

for track in osm_traces:
    print(f'Track {track.id}: length={track.get_length(units="km"):.2f} km')

Track 0: length=10.86 km
Track 1: length=22.33 km
Track 2: length=9.47 km
Track 3: length=28.08 km
Track 4: length=3.39 km
Track 5: length=0.62 km
Track 6: length=0.01 km
Track 7: length=0.71 km

Below we set up some visualization options for holoviews. Holoviews is a library for creating interactive visualizations of complex datasets with ease. Holoviews provides a declarative approach to building visualizations, allowing you to express your visualization intent concisely. Holoviews combines the usage of Matplotlib, Bokeh, and Plotly and supports creating interactive visualizations. You can easily add interactive elements like hover tooltips, zooming, panning, and selection widgets to your plots. Compared to folium, however, it does not allow for as much freedom and development outside the box. Folium is primarily designed for creating web-based maps with features like tile layers and GeoJSON overlays, offering a high degree of customization for map-based visualizations. Holoviews, on the other hand, focuses more on general-purpose interactive visualizations beyond just maps, offering a broader range of visualization options.

See examples and documentation at https://holoviews.org.

from holoviews import opts, dim
import hvplot.pandas

plot_defaults = {'linewidth':5, 'capstyle':'round', 'figsize':(9,3), 'legend':True}
opts.defaults(opts.Overlay(active_tools=['wheel_zoom'], frame_width=500, frame_height=400))
hvplot_defaults = {'tiles':None, 'cmap':'Viridis', 'colorbar':True}

7.1.3 Traces generalisation

The MinTimeDeltaGeneralizer class from MovingPandas is applied to the osm_traces object. This class is responsible for simplifying or generalizing the GPS traces based on a minimum time delta. In this case, traces are being generalized to a tolerance of one minute.

from datetime import datetime, timedelta
osm_traces = mpd.MinTimeDeltaGeneralizer(osm_traces).generalize(tolerance=timedelta(minutes=1))
osm_traces.hvplot(title='OSM Traces', line_width=3, width=700, height=400)

Visualising by speed

osm_traces.get_trajectory(0).add_speed(overwrite=True, units=("km","h"))
osm_traces.get_trajectory(0).hvplot(
    title='Speed (km/h) along track', c='speed', cmap='RdYlBu',
    line_width=3, width=700, height=400, tiles='CartoLight', colorbar=True)

One can also convert the TrajectoryCollection (MovingPandas’ object) to a LineString GeoDataFrame. This would allow us to take advantage of what we learnt across the previous sessions. For example, we can plot through GeoPandas and matplotlib after having projected the layer.

crs = 'EPSG:27700'
gps_tracks = osm_traces.to_traj_gdf()
gps_tracks = gps_tracks.set_crs("EPSG:4326").to_crs(crs)

As you can see, from the map above, OSM traces may include also odd traces that jump from different locations of the city.

Exercise: Explore the gps_tracks dataset and try to compute the average speed of each of the tracks. Try to understand, also using the gps_track_points (do not forget to project it, in case), if you can find a way to filter out traces that follow very odd routes.

7.2 Animations in Folium

7.2.1 Animating GPS tracks

from folium.plugins import TimestampedGeoJson

Download this file in your data folder.

gdf = gpd.read_file('../data/geolife_small.gpkg')
gdf['t'] = pd.to_datetime(gdf['t'])
gdf = gdf.set_index('t').tz_localize(None)
gdf.index.name = None

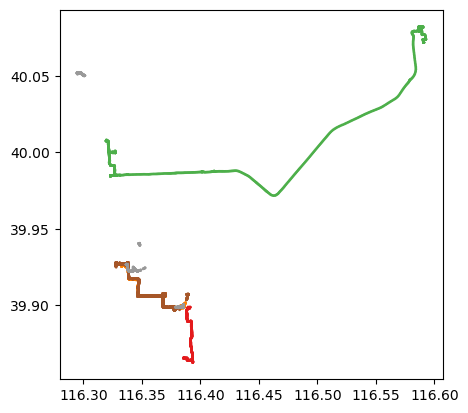

gdf.plot(column = 'trajectory_id', markersize = 1, cmap = 'Set1')

• gdf['t'] = pd.to_datetime(gdf['t']): This converts the values in the ‘t’ column of gdf into datetime objects using pd.to_datetime(). This is useful for time-series data where ‘t’ likely represents time information.
• gdf = df.set_index('t').tz_localize(None): This sets the index to the column t and removes the timezone information using tz_localize(None)

def geo_df_to_timestamped_geojson(geo_df, colour="blue", marker_type="LineString"):
    """
    Convert a GeoDataFrame to a list of timestamped GeoJSON features.

    Parameters
    ----------
        geo_df: GeoDataFrame
            The GeoDataFrame containing the geographic data.
        colour:str
            The color of the line or marker. Defaults to "blue".
        marker_type: str
            The type of marker to use, e.g., "LineString" or "Point". Defaults to "LineString".

    Returns
    -------
        feature_list: list
            A list of GeoJSON features, each representing a timestamped marker or line.
    """

    df = geo_df.copy()
    x_coords = df["geometry"].x.to_list()
    y_coords = df["geometry"].y.to_list()
    coordinate_list = [[x, y] for x, y in zip(x_coords, y_coords)]
    times_list = [i.isoformat() for i in df.index.to_list()]

    feature_list = [
       {
           "type": "Feature",
           "geometry": {
               "type": marker_type,
               "coordinates": coordinate_list,
           },
           "properties": {
               "times": times_list,
               "style": {
                   "color": colour,
                   "weight": 3,
               },
           },
       }
    ]

    return feature_list

Obtaining features from the GeoDataFrame so that we can plot them in folium directly.

features = geo_df_to_timestamped_geojson(gdf, colour="blue", marker_type="LineString")

This TimestampedGeoJson plugin allows us to draw data on an interactive folium map and animate it depending on a time variable (year, month, day, hour, etc) and supports any kind of geometry (points, line strings, etc). The only thing you have to do is to make sure to “feed” it with a geojson in the right format.

xy = gdf.unary_union.centroid
map = folium.Map(location=[xy.y, xy.x], zoom_start=10)

TimestampedGeoJson({"type": "FeatureCollection", "features": features},
    period="PT1S",
    add_last_point=True,
    transition_time=10
).add_to(map)

map

Make this Notebook Trusted to load map: File -> Trust Notebook

The arguments of the TimestampedGeoJson plugin are:

• The geojson with the data.
• period: It is the time step that the animation will take starting from the first value. For example: “P1M” 1/month, “P1D” 1/day, “PT1H” 1/hour, and ‘PT1M’ 1/minute.
• duration: Period of time which the features will be shown on the map after their time has passed. If None, all previous times will be shown.

7.2.2 Other Animations with Folium

This part of the notebook has been readapted from this post.

We are going to use the data of New York’s Citi Bike-sharing service. This is publicly available and can be downloaded from here. In this notebook, we used the data for the month of March 2024. Place it in your data folder, you can download it from here.

# Import the file as a Pandas DataFrame
nyc = pd.read_csv("../data/NY_march_bikeData.csv")
nyc.head()

	ride_id	rideable_type	started_at	ended_at	start_station_name	start_station_id	end_station_name	end_station_id	start_lat	start_lng	end_lat	end_lng	member_casual
0	9F5EEFB7CF78C6EA	electric_bike	2024-03-21 13:32:42	2024-03-21 13:35:42	Stevens - River Ter & 6 St	HB602	City Hall - Washington St & 1 St	HB105	40.743143	-74.026907	40.737360	-74.030970	member
1	01E2E1F218F9D303	electric_bike	2024-03-16 08:26:15	2024-03-16 08:47:53	Pershing Field	JC024	Pershing Field	JC024	40.742379	-74.051996	40.742677	-74.051789	member
2	C2914D662B33AA55	electric_bike	2024-03-15 15:17:36	2024-03-15 15:32:12	Pershing Field	JC024	Pershing Field	JC024	40.742480	-74.051942	40.742677	-74.051789	member
3	6723F7CE51888493	electric_bike	2024-03-13 08:34:26	2024-03-13 08:50:08	Pershing Field	JC024	Pershing Field	JC024	40.742400	-74.051963	40.742677	-74.051789	member
4	EAB7E29AAB546941	electric_bike	2024-03-15 15:37:58	2024-03-15 16:19:32	Pershing Field	JC024	Pershing Field	JC024	40.742459	-74.051973	40.742677	-74.051789	member

For every trip made we have:

• started_at: start date and time of the trip.
• ended_at: end date and time the trip.
• start_station_id, start_station_name, start_lat, and start_lng: all the useful info to identify and locate the start station.
• end_station_id, end_station_name, end_lat, and end_lng: all the useful info to identify and locate the end station of the trip.

type(nyc.loc[0, 'started_at'])

str

Transformation

The variables started_at and ended_at were imported as text (string). Therefore, we are going to do the following:

• Change the type of these variables to datetime.
• Compute the duration of the trip in seconds.
• Define started_at as the data frame’s index. This will allow us to pivot (group) values easier by time of day.
• Create a new column called ty to help us in the pivoting.

# Setting the right format for started_at and ended_at
nyc['started_at'] = pd.to_datetime(nyc['started_at'])
nyc['ended_at'] = pd.to_datetime(nyc['ended_at'])
nyc['duration'] = (nyc['ended_at'] - nyc['started_at']).dt.total_seconds()

# Define the startime as index and create a new column
nyc = nyc.set_index('started_at')
nyc['ty'] = 'station'
nyc.head(1)

	ride_id	rideable_type	ended_at	start_station_name	start_station_id	end_station_name	end_station_id	start_lat	start_lng	end_lat	end_lng	member_casual	duration	ty
started_at
2024-03-21 13:32:42	9F5EEFB7CF78C6EA	electric_bike	2024-03-21 13:35:42	Stevens - River Ter & 6 St	HB602	City Hall - Washington St & 1 St	HB105	40.743143	-74.026907	40.73736	-74.03097	member	180.0	station

Now, we need to feed TimestampedGeoJson plugin with the right data format. To do so, we will transform the data frame. First, we count the number of trips per hour that start at each station

# Aggregate number of trips for each start station by hour of the day
start = nyc.pivot_table('duration',
                     index = ['start_station_id',
                              'start_lat',
                              'start_lng',
                              nyc.index.hour],
                     columns = 'ty',
                     aggfunc='count').reset_index()

start.head()

ty	start_station_id	start_lat	start_lng	started_at	station
0	6786.02	40.714002	-74.093255	12	1
1	6839.10	40.714002	-74.093255	17	1
2	6948.10	40.714002	-74.093255	14	1
3	6955.05	40.714002	-74.093255	12	1
4	7141.07	40.714002	-74.093255	16	1

In the code above we use the pandas pivot_table() to group the data. Note that the last index we use is nyc.index.hour. This takes the index of the dataframe and, since it is of the datetime format, allows us to derive the hour of that value. Similarly, we could get the day or month.

To get a daily average we will divide by the numbers of days.

days = nyc.index.day.max()
start['station'] = start['station']/days

Now, we will change the name of the columns and define the color we want the points to have on the map.

# Rename the columns
start.columns = ['station_id', 'lat', 'lon', 'hour', 'count']

# Define the color
start['fillColor'] = '#53c688'

# The stops where less than one daily trip
# will have a different color
start.loc[start['count']<1, 'fillColor'] = '#586065'
start.head(1)

	station_id	lat	lon	hour	count	fillColor
0	6786.02	40.714002	-74.093255	12	0.032258	#586065

After transforming the data frame to the format we need, we have to define a function that takes the values from it and creates the geojson with the right properties to use in the plugin.

def create_geojson_features(df):
    features = []

    for _, row in df.iterrows():
        feature = {
            'type': 'Feature',
            'geometry': {
                'type':'Point',
                'coordinates':[row['lon'],row['lat']]
            },
            'properties': {
                'time': pd.to_datetime(row['hour'], unit='h').__str__(),
                'style': {'color' : ''},
                'icon': 'circle',
                'iconstyle':{
                    'fillColor': row['fillColor'],
                    'fillOpacity': 0.8,
                    'stroke': 'true',
                    'radius': row['count'] + 5
                }
            }
        }
        features.append(feature)

    return features

The function:

• Takes a data frame and iterates through its rows.
• Creates a feature and defines the geometry as a point, taking the lat and lon variables from our data frame.
• Defines the rest of the properties taking the other variables:
  1. Takes the hour variable to create a time property. This one is the most important step to animate our data.
  2. Takes fillColor to create the fillColor property.
  3. Defines the radius of the point as a function of the count variable.

Once the function is defined, we can use it on our data frame and get the geojson.

start_geojson = create_geojson_features(start)
start_geojson[0]

{'type': 'Feature',
 'geometry': {'type': 'Point',
  'coordinates': [-74.0932553, 40.714001716666665]},
 'properties': {'time': '1970-01-01 12:00:00',
  'style': {'color': ''},
  'icon': 'circle',
  'iconstyle': {'fillColor': '#586065',
   'fillOpacity': 0.8,
   'stroke': 'true',
   'radius': 5.032258064516129}}}

With this, we can now create the animated map.

nyc_map = folium.Map(location = [40.71958611647166, -74.0431174635887],
                    tiles = "CartoDB Positron",
                    zoom_start = 14)

TimestampedGeoJson(start_geojson,
                  period = 'PT1H',
                  duration = 'PT1M',
                  transition_time = 1000,
                  auto_play = True).add_to(nyc_map)

nyc_map

Make this Notebook Trusted to load map: File -> Trust Notebook

It might be a good idea to analyse where trips end at different times of the day. Even more, it could be interesting to see both maps side by side and try to identify patterns.

The DualMap plugin can help us achieve this. To use it, we will first run a similar script to the one we did above to get the number of trips that end at each station, by time of the day.

nyc1 = nyc.reset_index().set_index('ended_at')
end = nyc1.pivot_table('duration',
                     index = ['end_station_id',
                              'end_lat',
                              'end_lng',
                              nyc1.index.hour],
                     columns = 'ty',
                     aggfunc='count').reset_index()

end['station'] = end['station']/days

end.columns = ['station_id', 'lat', 'lon', 'hour', 'count']
end['fillColor'] = '#e64c4e'
end.loc[end['count']<1, 'fillColor'] = '#586065'
end_geojson = create_geojson_features(end)

We first create the dual map and then we add start_geojson to the left map (m1) and the end_geojson to the right map (m2).

from folium.plugins import DualMap

dualmap = DualMap(location = [40.71958611647166, -74.0431174635887],
                 tiles = 'cartodbpositron',
                 zoom_start = 14)

TimestampedGeoJson(start_geojson,
                  period = 'PT1H',
                  duration = 'PT1M',
                  transition_time = 1000,
                  auto_play = True).add_to(dualmap.m1)

TimestampedGeoJson(end_geojson,
                  period = 'PT1H',
                  duration = 'PT1M',
                  transition_time = 1000,
                  auto_play = True).add_to(dualmap.m2)

dualmap

Make this Notebook Trusted to load map: File -> Trust Notebook

Another interesting plugin, HeatmapWithTime, allows animating heatmaps. According to the documentation, the input needs to be a list of lists:

“data (list of lists of points of the form [lat, lng] or [lat, lng, weight]) – The points you want to plot. The outer list corresponds to the various time steps in sequential order. (weight is in (0, 1] range and defaults to 1 if not specified for a point)”

Therefore, we need to create this list of points for each hour of the day and then put all those lists in a new one.

# Create an empty list
df_hour_list = []

# Create a series with the different hours of the day
hours = pd.Series(nyc.index.hour.unique().sort_values())

# Create a list of points for each hour of the day
def create_list(hour):
    df_hour_list.append(nyc.loc[nyc.index.hour == hour,
                                ['start_lat',
                                 'start_lng']].
                        groupby(['start_lat',
                                 'start_lng']).sum().reset_index().values.tolist())
hours.apply(create_list);

from folium.plugins import HeatMapWithTime

location = [40.71958611647166, -74.0431174635887]
# Add trip events to the map
map_time = folium.Map(location=location,
                      tiles="CartoDB Positron",
                      zoom_start=12)

HeatMapWithTime(df_hour_list,
                auto_play=True,
                max_opacity=0.5,
                gradient = {0.2: '#FBD973',
                            0.4: '#fa782f',
                            0.75: '#F16578',
                            1: '#782890'}).add_to(map_time)
map_time

Make this Notebook Trusted to load map: File -> Trust Notebook

Exercise:

Explore the other folium plugins and think which of them could be useful for your last assignment. See: https://python-visualization.github.io/folium/latest/user_guide/plugins.html

If you have time also have a look at PyDeck.

Pydeck is a Python library used for creating interactive maps and data visualizations. It can be exploited to generate appealing maps with features like scatter plots, line plots, choropleths, and, more importantly, 3D visualisations. Pydeck is built on top of Deck.gl, a WebGL-powered library for rendering large-scale data visualizations. It offers various customization options for styling and configuring the visualizations and supports integration with Pandas and GeoPandas.

Pydeck installation is not trivial and can be result in conflicts with other libraries/versions, see: https://deckgl.readthedocs.io/en/latest/installation.html

Its usage for the final assignment is optional.
